If-Else-If Statement in Excel VBA

The If-Else-If statement in VBA allows you to execute different code blocks based on conditions, enabling decision-making in your programs. For example, we can check which department has the highest salary or validate user inputs in Excel. This article explains the If-Else-If structure with a practical example.

1. Setting Up VBA

To write VBA code, enable the Developer tab and create a module:

In the Microsoft Excel tabs, select the Developer Tab. Initially, the Developer Tab may not be available.

The Developer Tab can be enabled easily by a two-step process :

Right-click on any of the existing tabs at the top of the Excel window.
Now select Customize the Ribbon from the pop-down menu.

In the Excel Options Box, check the box Developer to enable it and click on OK.

Now, the Developer Tab is visible.

Now click on the Visual Basic option in the Developer tab and make a new module to write the program using the Select Case statement.

Developer -> Visual Basic -> Tools -> Macros

Now create a Macro and give any suitable name.

This will open the Editor window where can write the code.

2. IF ELSE IF Statement

The syntax is :

If condition1/expression1 Then
Code Block 1
Else If condition2/expression2 Then
   Code Block 2
Else
    Code Block 3
End If

Explanation:

condition1, condition2: Logical expressions (e.g., x > y, a = b) that evaluate to TRUE or FALSE.
If condition1 is TRUE, Code Block 1 runs, and the program exits the structure.
If condition1 is FALSE, condition2 in ElseIf is checked. If TRUE, Code Block 2 runs.
If all conditions are FALSE, the Else block (optional) runs.
Logical operators like And (both conditions TRUE) or Or (at least one TRUE) can combine conditions.

Flow Diagram :

Example: Finding the Maximum Salary

This example compares salaries of HR, Finance, and IT departments to find the highest.

Code:

C++

Sub FindMaxSalary()
    ' Declare variables
39;     Dim HR_Sal As Double, Fin_Sal As Double, IT_Sal As Double
    ' Get user input with error handling
    On Error Resume Next
    HR_Sal = InputBox("Enter HR department salary:")
    If Err.Number <> 0 Or HR_Sal < 0 Then
        MsgBox "Invalid HR salary"
        Exit Sub
    End If
    Fin_Sal = InputBox("Enter Finance department salary:")
    If Err.Number <> 0 Or Fin_Sal < 0 Then
        MsgBox "Invalid Finance salary"
        Exit Sub
    End If
    IT_Sal = InputBox("Enter IT department salary:")
    If Err.Number <> 0 Or IT_Sal < 0 Then
        MsgBox "Invalid IT salary"
        Exit Sub
    End If
    On Error GoTo 0
    ' Compare salaries
    If HR_Sal > Fin_Sal And HR_Sal > IT_Sal Then
        MsgBox "HR department has maximum salary: " & HR_Sal
    ElseIf Fin_Sal > HR_Sal And Fin_Sal > IT_Sal Then

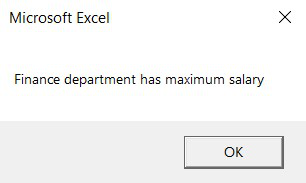

        MsgBox "Finance department has maximum salary: " & Fin_Sal
    ElseIf IT_Sal > HR_Sal And IT_Sal > Fin_Sal Then
        MsgBox "IT department has maximum salary: " & IT_Sal
    Else
        MsgBox "Multiple departments have the same maximum salary"
    End If
End Sub

Explanation:

Variables (HR_Sal, Fin_Sal, IT_Sal) store user inputs as Double to handle large salaries.
Error handling checks for invalid (non-numeric) or negative inputs.
The If-Else-If structure compares salaries, with an Else block for ties.
